| General | |
|
Five
different versions |
U128-MN(4 electrodes), U128-32(32 electrodes), U128-64(64 electrodes), U128-96(96 electrodes), and U128-128(128 electrodes). Easy upgrade. |
| Measurment variables | Resistivity, IP and SP |
| Measurement range | From -10V to +10V |
| SP compensation | Automatic cancellation |
| Resistivity cycle times | From 0.1S to 10S |
| Automatic multi-electrodes | Yes |
| Data samping rate | 100KHZ |
| Data storage | Unlimited |
| Data transmission | USB |
| Power supply | External 12V battery |
| Operating temperature | -20 to +70 oC |
| Operating Humidity | 98% RH |
| Weight | 9 kg |
| Dimension | 420x 360 x 200mm |
| Built-in GPS | Optional |
| Transmitter | |
| Power | 500W |
| Current | Up to 3A |
| Accuracy | Better than 0.2% |
| AB Voltage option | 100, 200, 300, …,900Vp-p |
| Receiver | |
| Electrodes |
Up
to 128 |
| Channels |

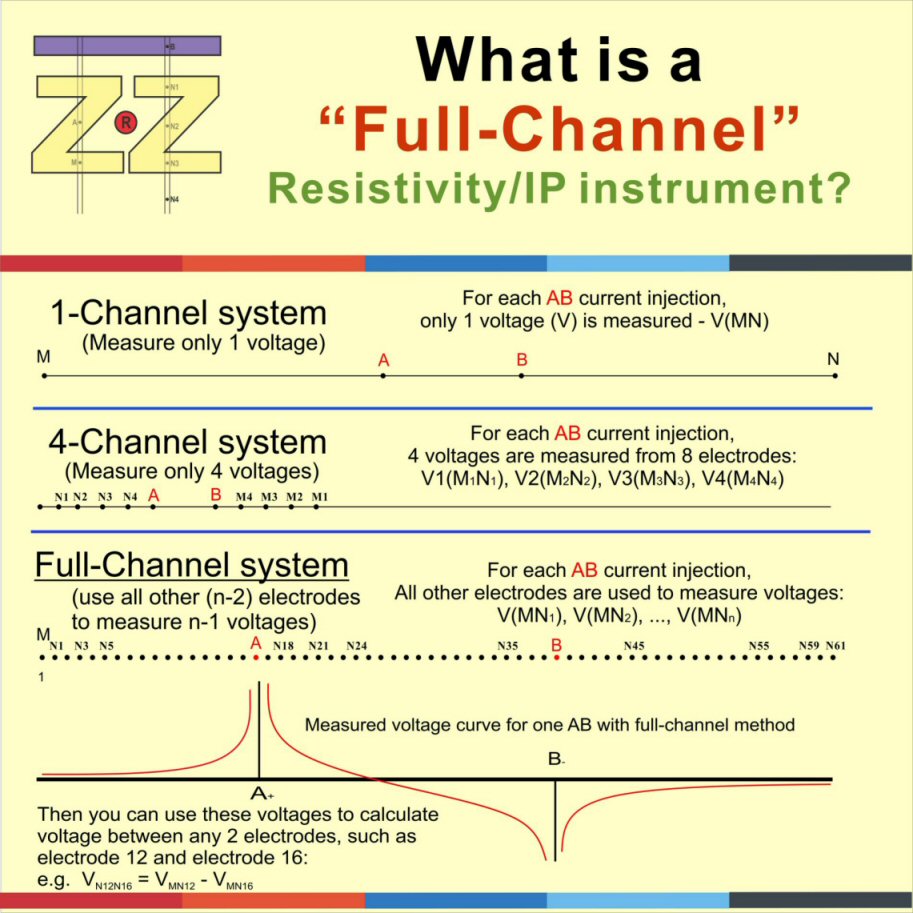

Full-channel or up
to 128 channels |
| Accuracy | Within 0.1% |
| Input impedance | > 107 Ohm.m |
| Input voltage protection | 450V |
| AD resolution | 24 bits |
| Noise suppresion | Better than 100 dB, automatically suppresses powerline noise |
